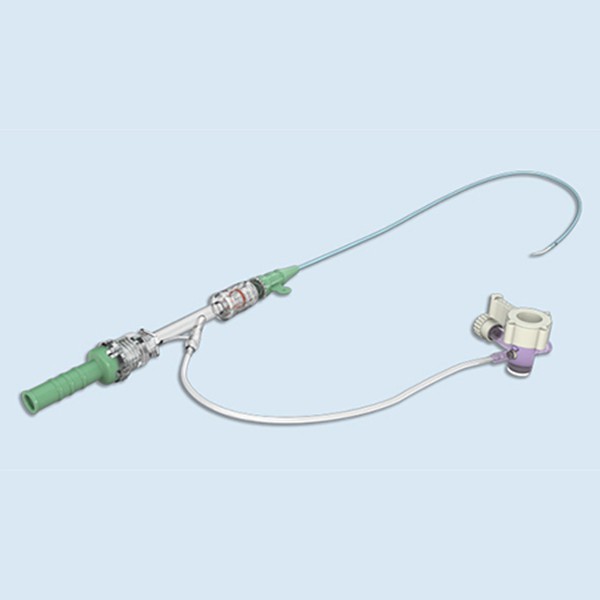

Introducer Sheath and Dilator

What is INTRODUCER SHEATH and DILATOR? An introducer sheath comprises a tubular body with a distal portion and a proximalportion , the proximal portion being configured to be inserted into the patient's body. Introducer sheath can be separated along its length in a longitudinal direction.......

Send Inquiry

What is INTRODUCER SHEATH and DILATOR?
An introducer sheath comprises a tubular body with a distal portion and a proximal portion , the proximal portion being configured to be inserted into the patient's body. Introducer sheath can be separated along its length in a longitudinal direction. The introducer sheath further comprises at least a first handle which is pivotable about a fulcrum.

PRECAUTIONS
● Introducer and Sheath only for experienced doctors who have been trained for diagnosis and interventional operation, and shall use the standard skills for catheter sheath entrance.
● Exhaust the catheter sheath to be clean through sidearm and use heparin-saline to was before catheter sheath insertion or device evacuation.

ADVANTAGE OF SHEATH CATHETER TYPE B/C/D
Excellent flex resistance and compliance: -The sheath is designed in three layers, the PTFE inner layer ensures smooth delivery of the instrument, and the stainless steel spiral intermediate layer ensures excellent flex resistance. The nylon outer layer design provides smoother intravascular delivery.

MATERIAL & SPECIFICATIONS

PART/TYPE

TYPE A

TYPE B/C/D

Sheath Material

PTFE+Bi2O3

Inner layer: PTFE
Middle layer: stainless steel
Outer layer: PA/Nylon

Coating

PTFE

PTFE

Sheath Length (mm)

70, 100, 160, 250

450, 550, 700,900,1100,

Fr Sizes

4,5, 6, 7, 8, 9, 10, 11

4, 5, 6, 7, 8, 9,10,12
