Production Introduction

Tapered PTA balloon catheter

Tapered PTA balloon catheter,mainly used in the inferior knee artery,Tapered design matching with vascular anatomy, the size of the balloon changes from large to small, in line with the structure of vascular from large to small, and better reach the lesion point.

Product advantages of PTA conical balloon catheter

Excellent pushability, traceability, and crossability.
0.014" conical PTA balloon catheter has the pushability to take you deeper into the anatomy and across difficult lesions;
Two small diameters in one single balloon distal and proximal. It can better enter the vascular while reducing damage to the interior vascular wall; Low crossing profile enables the successful crossing of lesions;
Tighter pleat fold reduces the crossing profile for easier access to smaller, tighter, more distal regions; a Smooth, tapered tip offers better control to easily navigate turns and tortuosity;

Clinical application

Guide wire fitting system	Site of Lesion
0.035 system	Iliac artery, superficial femoral artery, proximal popliteal artery, iliofemoral artery, hemodialysis and venous dilation
0.018 system	Carotid arteries, renal arteries, superficial femoral arteries, infra-knee arteries, stubborn in-stent restenosis
0.014 system	Inferior knee artery, dorsal foot artery

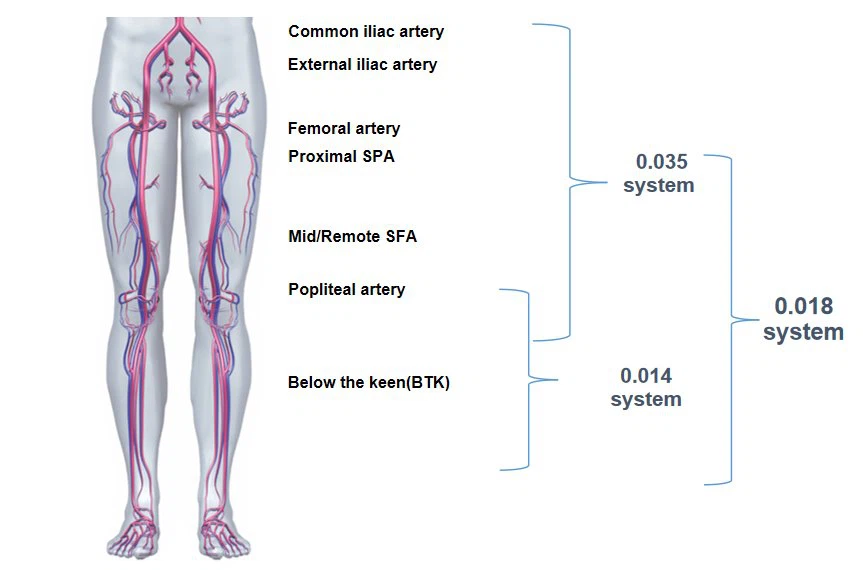

Clinical application (Lower extremity)

Selection of PTA Balloon Catheter

Appropriate outer diameter ：

The ratio of the outer diameter of the balloon to the inner diameter of the reference vessel size of the lesion is 0.9-1, and it is gradually pre-expanded to avoid damage to the target blood vessel caused by the excessive outer diameter of the balloon.

Moderate length ：

The positioning of the balloon should be about 1-2 mm beyond the lesion to avoid lateral displacement of the plaque caused by expansion.

Suitable pressure ：

Slowly pressurize, and the expansion time can be appropriately extended after the pressure reaches the expected value.

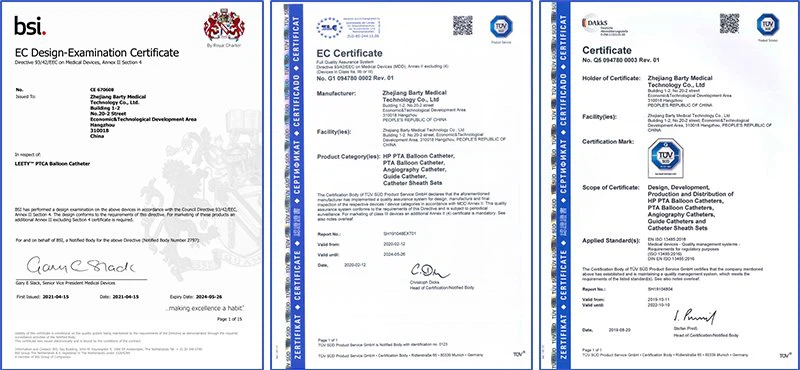

Certificates

Scoring balloon

FAQ

Q: Where is your company/factory located?

A: Our company/factory locates in Hangzhou, Zhejiang, where 25min to Hangzhou Xiaoshan International Airport.

Q: What's your MOQ?

A: If we have the products in stock, it will be no MOQ. If we need to produce, we can discuss the MOQ according to customer's exact situation.

Q: Can we have sample?

A: Yes,For stock items, we can provide sample soon.

Q: What Certificates do you have?

A: Our company has obtained ISO13485, CE ,TUV Certification etc

Q: What can you buy from us?

A: Introducer sheath Set, SC/NC PTA Balloon catheter, PTA conical balloon catheter,PTA Scoring balloon catheter,SC/NC PTCA Balloon catheter, Angiography catheter, Guiding catheter;
